Amorphous Core

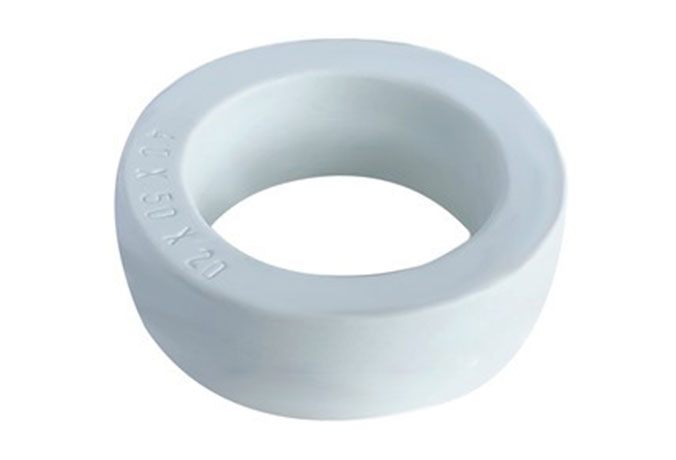

Amorphous Core is preferred choice for transformers required low losses at high frequency.  We have Fe-Based amorphous toroidal cores,C cores and Co-based amorphous toroidal cores.

Fe-based amorphous is currently the most common type of amorphous on the market and the largest output. The iron-based amorphous alloy is composed of 80% Fe, 20% Si B. It has high saturation magnetic flux density (1.56T), and the iron-based amorphous alloy has more excellent magnetic permeability, excitation current and iron loss than silicon steel sheets, especially low iron loss (1/3-1/5 of silicon steel sheets), its operating frequency is 50Hz-10KHz. 2. Cobalt-based amorphous has also a large amount of Cobalt. Because the price of Co is very expensive, the output is not very large. The main frequency of use is 20KHz-200KHz

Specification：

  Brand：WBCORE

  Material：Fe-based Amophous

  Tape Thickness: 28~35μM

  Saturated Flux Density: 1.56T

  Curie Temperature: 400℃

  Density：7.18kg/dm3

  Frequency：50Hz~10kHz

  Processing:Auto Winding,Annealing

  Capacity: 10 Tons/Day

  Custom Design: Available

  Sealing: Plastic Boxes&Coating

Application：

  Transformers,Chokes,Filters
